The World's Best
Water Security System
FLO n STOP Wireless Water Shutoff System
US Patents 5881755 and 8201572 - Certified to NSF61 Annex G - Meets State and Municipal Plumbing Codes
Product Line
The FLO n STOP Wireless Water Shut-off Systems
Ü See how it protects
Û Ü Product Data Sheet
Û

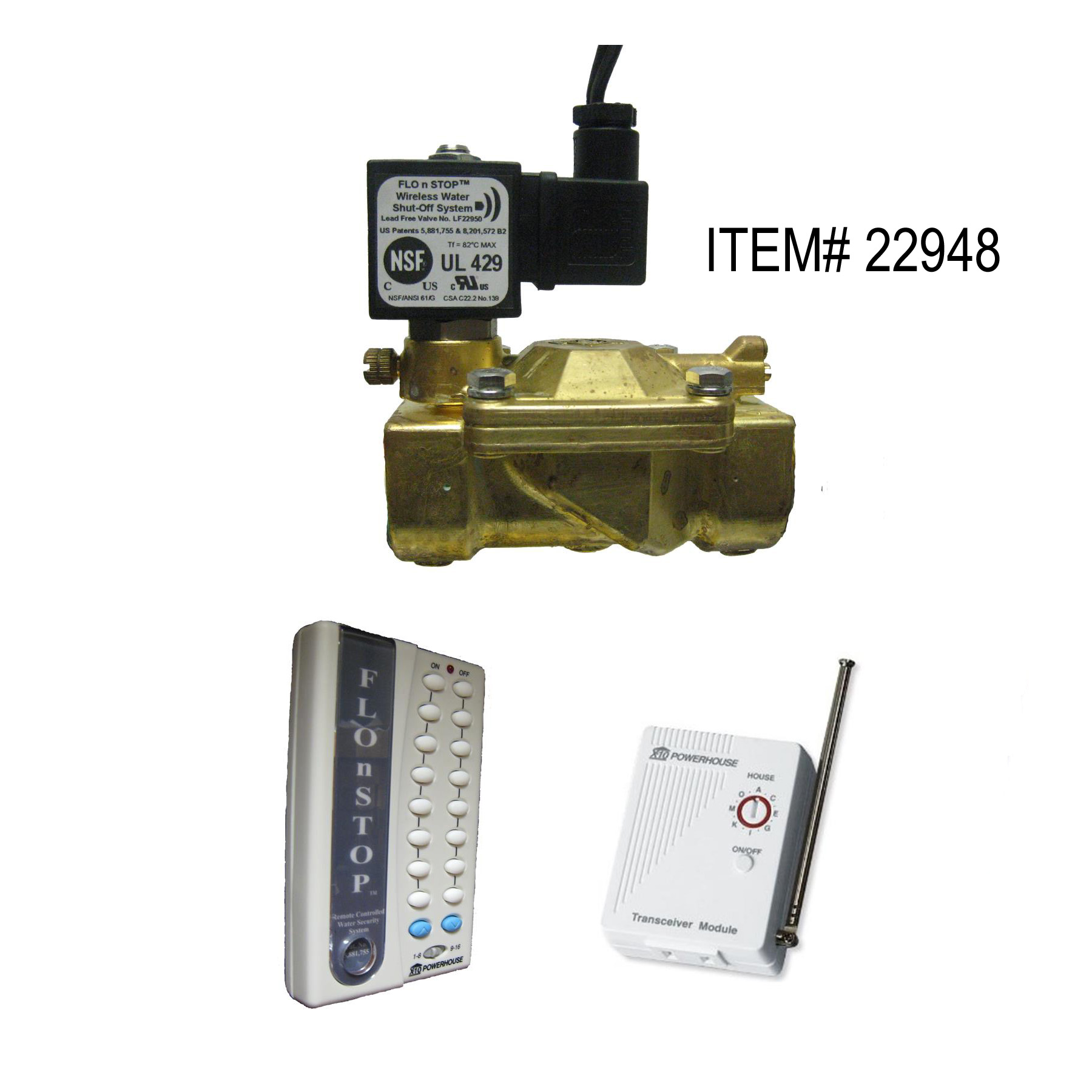

Ø 1" Certified Lead Free Brass Valve - Up to 16 indiv. coded settings (110-120VAC)
Each system meets U.S. and Canadian Plumbing Code Standards.
VALVE SPECIFICATIONS
Assembled Depth (in.) - 3 in
Assembled Height (in.) - 4 in
Assembled Width (in.) - 4 in
Color/Finish Family - Brass
Inlet - FIP
Outlet - FIP
Material - Lead Free Brass Brass
Maximum Pressure - 232 psi
Plumbing Part Type - Supply Line Valve
MFG Model# : 22948 (110-120VAC)
______________________________________________________________________________
Ø 1" Certified Lead Free Brass Valve - Up to 256 indiv. coded settings (110-120VAC)
Each system meets U.S. and Canadian Plumbing Code Standards.
VALVE SPECIFICATIONS
Assembled Depth (in.) - 3 in
Assembled Height (in.) - 4 in
Assembled Width (in.) - 4 in
Color/Finish Family - Brass
Inlet - FIP
Outlet - FIP
Material - Lead Free Brass Brass
Maximum Pressure - 232 psi
Plumbing Part Type - Supply Line Valve
MFG Model# : 22949 (110-120VAC)
______________________________________________________________________________
Ø 1" Nylon Valve - Up to 256 individual coded settings (110-120VAC)
VALVE SPECIFICATIONS
Assembled Depth (in.) - 3. in
Assembled Height (in.) - 4.5 in
Assembled Width (in.) - 4.5 in
Color/Finish Family - Nylon
Inlet - FIP
Outlet - FIP
Material - Nylon
Maximum Pressure - 232 psi
Plumbing Part Type - Supply Line Valve
MFG Model# : 22752 (110-120VAC)
______________________________________________________________________________
Available Accessories for the Flo n Stop Water System

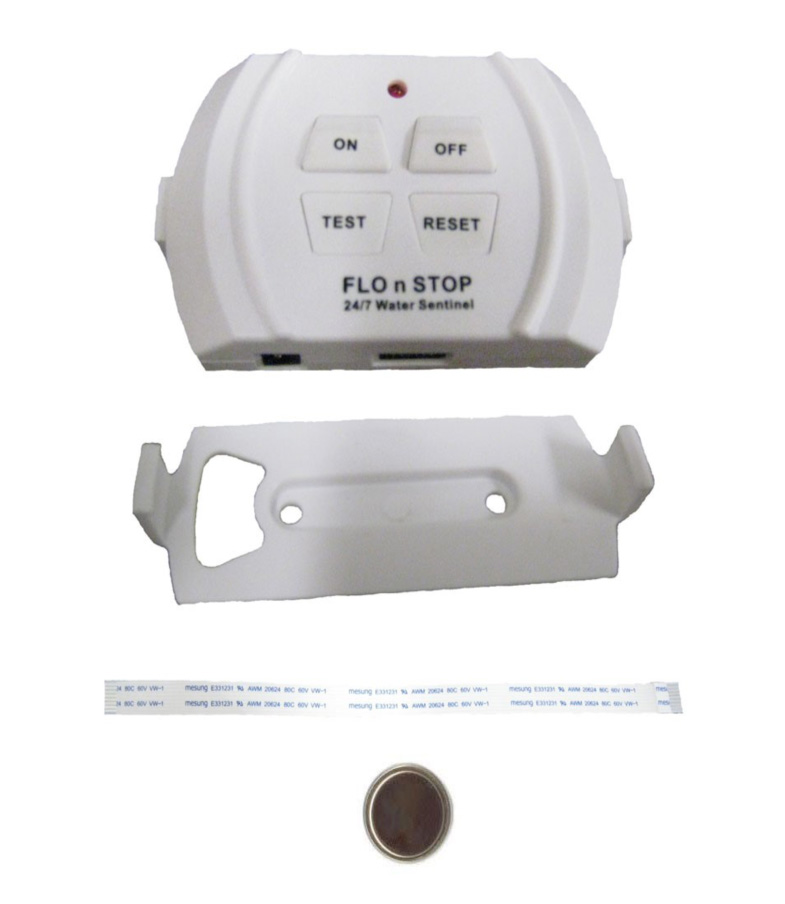

24/7 Water Sentinel Floor Sensor
Leak Detector with Audible Alarm Signal (Item #22703)
SPECIFICATIONS
Height (in.) - 2 in
Width (in.) - 3.5 in
Depth (in) - 5 in.
Battery Type - lithium ION (included)
Power Type - Low Voltage
Commercial/Residential - Both
Detects/Tests - Senses water on floor then transmits a
wireless coded signal to the FLO-n-STOP Shut-Off
Valve
MFG Model# : 22703 (single)
______________________________________________________________________________
Button Pad Transmitter
Placed by most used Exit/Entrance Item #22952
SPECIFICATIONS
Height (in.) - 4.5 in
Width (in.) - 3 in
Depth (in) - .75 in.
Color Family - Blue/White
Commercial/Residential - Both
Battery Type - four (4) AAA batteries (not included)
MFG Model# : 22952
______________________________________________________________________________
